Concepts
This tool allows the user to identify the programs called by or calling a particular program.The user has the option of printing a report on the usage.

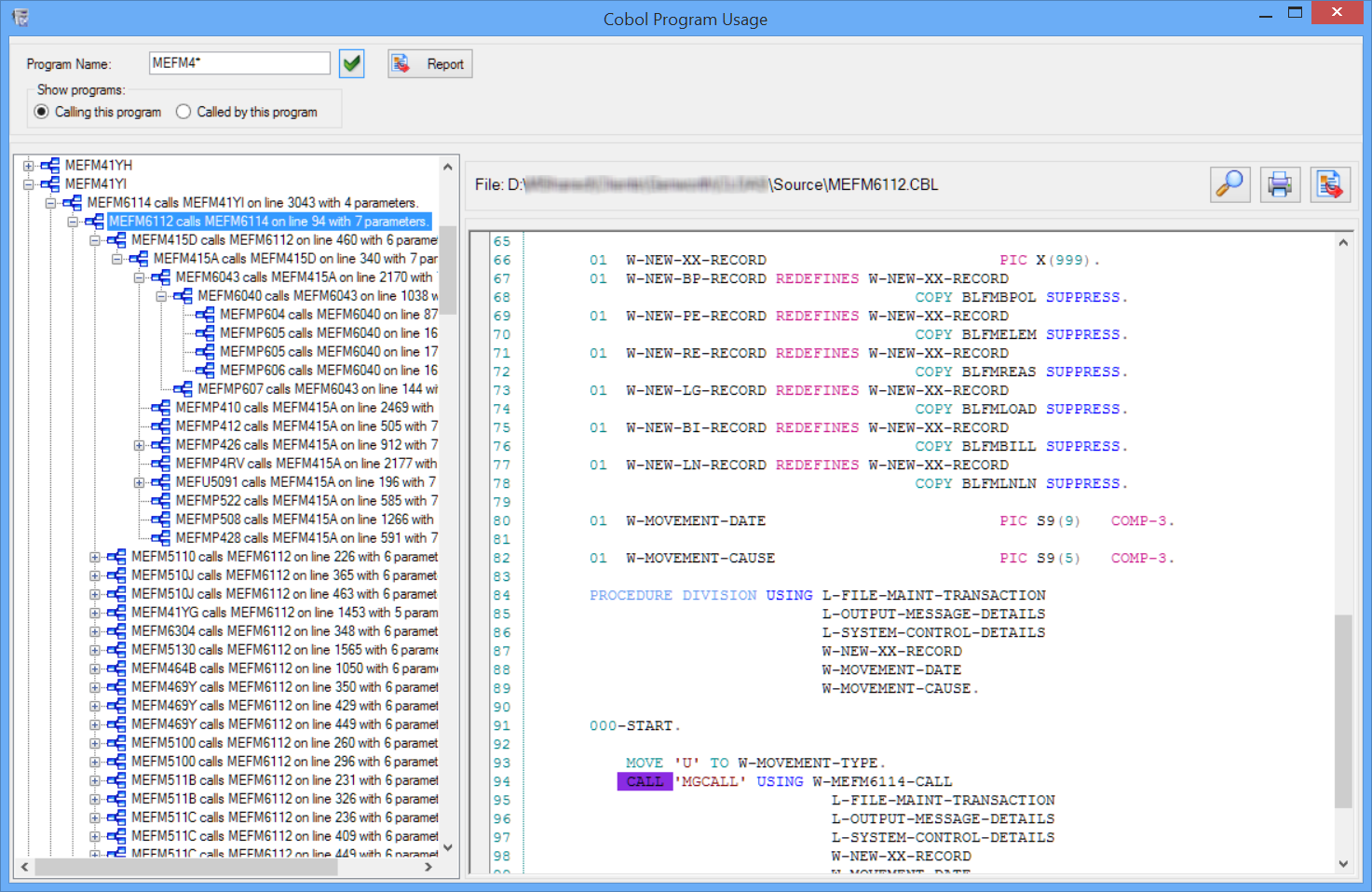

User interface
Program Name
Enter a mask for the program names to be queried. The character * represents one or more of any character. Click the
tick
button to update the list of programs below.
Show Programs radio control
Check the Calling this program radio button to show programs calling the program you are interested in (up the calling chain) and the Called by this program to show programs called by the program you are interested in (down the calling chain). The program tree control will be updated as you switch views
Program Tree Control
The program tree control lists at it's top level the programss matching the Program Name mask specified above it. Clicking on the + beside any program expands the branch to show the programs up or down the calling chain (depending on the Show Programs radio control). If you select any item in the tree, the item is displayed in the browse window to the right with the place where the program is referenced higlighted in purple.
The Browse Control
The browse control shows the COBOL code within a structured, syntax hilighted text box, from which you may scroll,
print or
search to further your analysis. Additionally you may
open a new window open a new browse window with the current source
displayed, at the current position of the code.
Report button
The Report button produces an XML file describing the current program query. That file is opened with the default program defined on your system for XML
files and will look something like:
